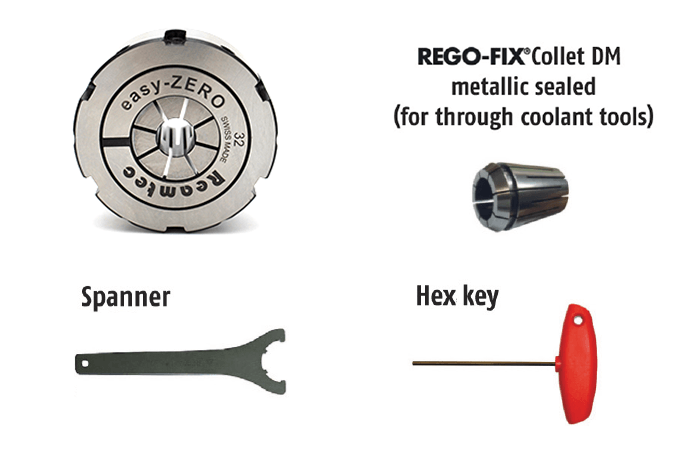

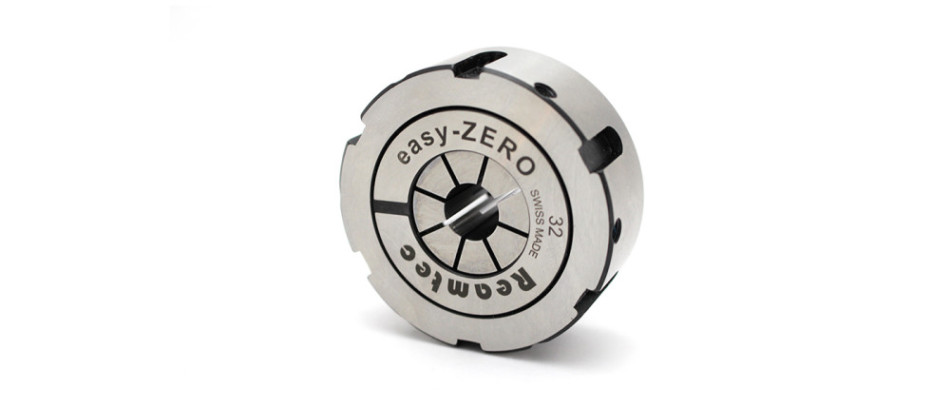

Adjustable compensation nut from Reamtec. Compatible with all ER collet chucks – sizes ER16 to ER40.
Minimize runout for any round tool, even at the spindle. Priced to belong in every machinist’s toolbox.
Have a question about the easyZERO or would like more information? Use this form to contact our team today!

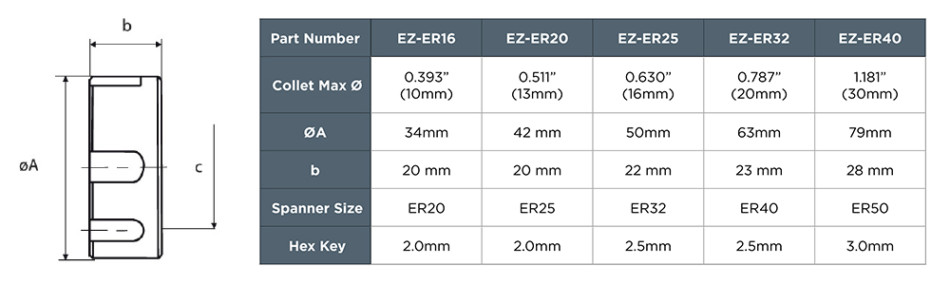

| Part Number | EZ-ER16 | EZ-ER20 | EZ-ER25 | EZ-ER32 | EZ-ER40 |
|---|---|---|---|---|---|
| Collet Max Ø | 0.393” (10mm) | 0.511” (13mm) | 0.630” (16mm) | 0.787” (20mm) | 1.181” (30mm) |
| ØA | 34mm | 42mm | 50mm | 63mm | 79mm |
| b | 20mm | 20mm | 22mm | 23mm | 28mm |
| Spanner Size | ER20 | ER25 | ER32 | ER40 | ER50 |
| Hex Key | 2.0mm | 2.0mm | 2.5mm | 2.5mm | 3.0mm |
| Torque ft-lbs | 35 | 55 | 60 | 75 | 110 |
| Torque N-m | 50 | 75 | 85 | 105 | 150 |
