Replace secondary operations while obtaining superior surface finish.

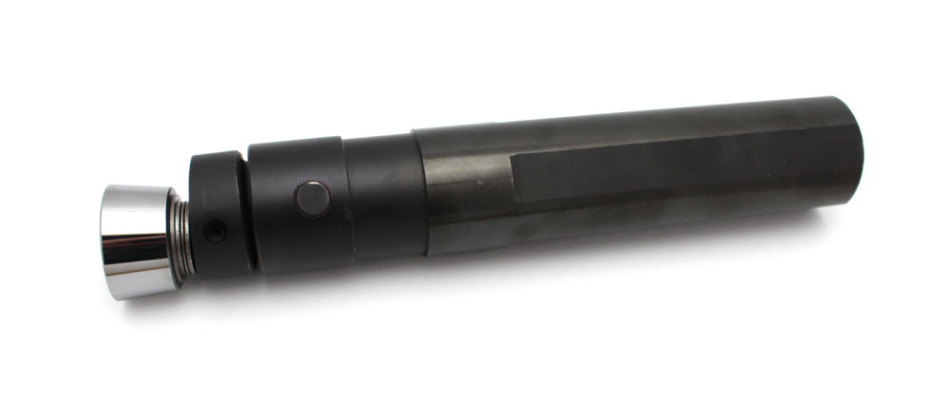

The Boring Bar Style ID/OD tool is used on turning machines to burnish internal and external surfaces creating extremely fine finishes in most ferrous and non-ferrous materials.

Advantages

Low microinch finish

  • Produces a 4 to 8 Ra surface finish in one pass.
  • Improves surface irregularities and tool marks.

Process improvements

  • Burnishing is a repeatable and consistent process
  • Fast cycle times – measured in seconds, not minutes!

Work hardening

  • Burnishing increases the surface hardness through the cold working process and compressive forces.
  • Increases metal’s resistance to fatigue and failure at stress points.
  • Produces a dense and uniform surface.

Low cost

  • Eliminates secondary machines and set ups.
  • Eliminates secondary processes such as grinding, honing and polishing.
  • Elliott burnishing tools feature long lasting and replaceable wear parts reducing total cost over the life of the tool.

Easy to use

  • MTG and Elliott burnishing tools require limited training to operate.
  • Easy to maintain and repair.
  • Common repair parts are always stocked!

Versatility

  • Burnishing is effective for many different part configurations.
  • Suitable process for a variety of metals – all ductile metals can be burnished!

Proven quality

  • The burnishing process has been refined and improved  for over 100 years and has a proven record of success.
  • Monaghan Tooling Group and Elliott Tool Technologies continue this long tradition by providing the industry’s highest quality burnishing tools.

Standard Options

Model S2320-00

  •  1.75” diameter roll
  • .032” radius
  • 12″ OAL
  • Designed for burnishing parts with a minimum ID of 2.25” and as deep as 8”-9”.
  • Also available with a .062” radius roll (CB127-00) or with a .093” radius roll (S2340-00).

Model S2320A00

  • Longer version of the 2320-00.
  • 1.75″ diameter roll
  • .032″ radius
  • 18″ OAL
  • Designed for burnishing parts with a minimum ID of 2.25 and as deep as 14-15″.
  • Also available with a .062” radius roll (CB168-00) or with a .093” radius roll (S2340A00).

Model S2289-00

  • Ideal for smaller parts being run on turning centers.
  • 1.188″ diameter roll
  • .032″ radius
  • 18″ OAL
  • Designed for burnishing parts with a bore diameter between 1.375″ – 2.25″ and to a depth of 3″.
  • Also available with a .062” radius roll (CB168-00) or with a .093” radius roll (S2340A00).

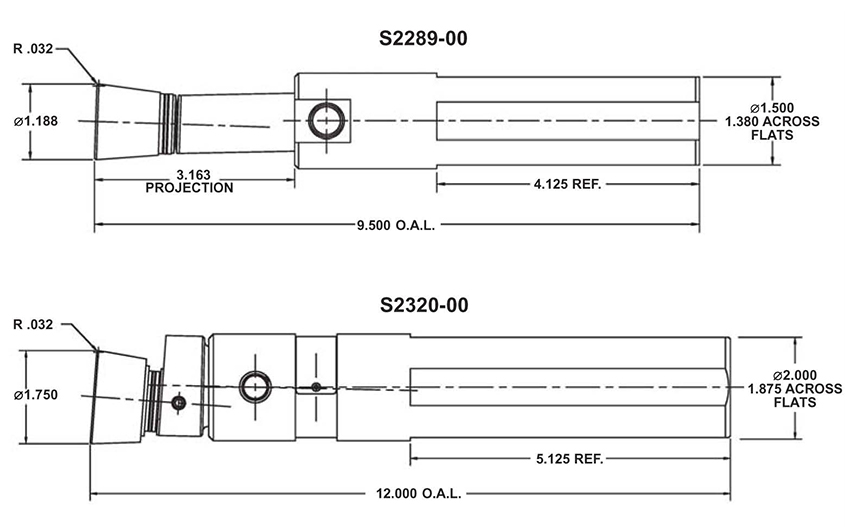

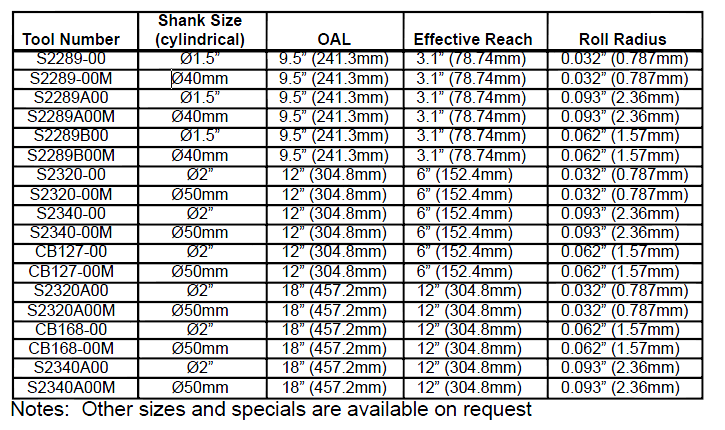

Standard Dimensions

Technical Reference and Downloads

Brochures and Catalogs

View the Boring Bar Style Carbide Roll Tool in action:
