COMPACT FLOATING HOLDERS

compact holders for precision machining

PROCESS CAPABLE FLOATING HOLDER OPTIONS IN A VARIETY OF SIZES.

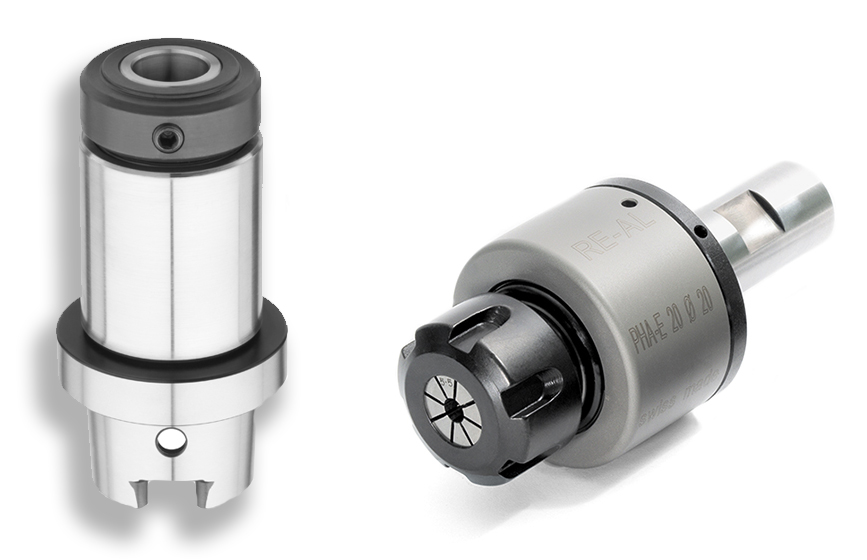

RE-AL compact floating holders with parallel axis for accurate position and self-centering.

DIATOOL floating holders with factory-set, true 360 float made possible by cylindrical roller design.

Request A Quote

TECHNICAL REFERENCE AND DOWNLOADS

RE-AL Compact Floating Holders Catalog

DIATOOL Compact Floating Holder Catalog

Pin bores application example at Monaghan Tooling

Pin Bores on Automotive Part

Material: Ductile Iron

Tooling: Rambo Speed Drill with GTX Coating

Advantages:

  • Tool reduction from 2 to 1
  • 5 seconds saved per part
  • Annual cost savings of 312 machining hours



Access the full case study here!

Connecting Rod application at Monaghan Tooling

Connecting Rod

Material: C70, Steel

Tooling: Drills with S4 geometry (coated) Spotfacing tools, Z=6 (coated)

Advantages: Approx. 3000 holes (drilling)

Speed Drill S2 - Application Example - Monaghan Tooling

Injection Pump

Material: 42CrMoV4, Steel

Tooling: Special drilling tool with S2 geometry

Advantages: Extended tool life and process stability
