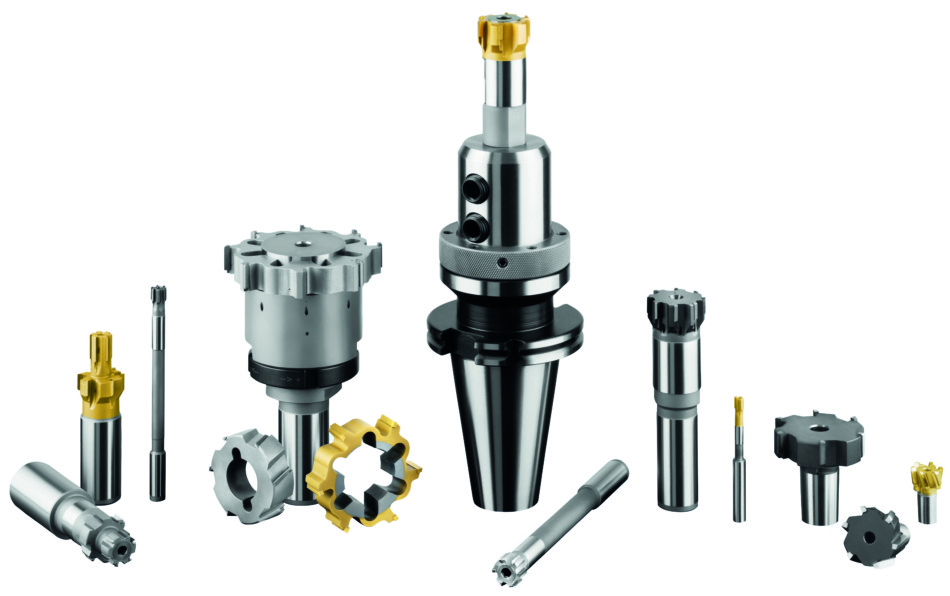

DIATOOL’s high performance reaming products produce precision bores at much higher feed rates than single-point tools – reducing cycle time and total cost of ownership.
DIATOOL’s high performance expandable reaming products offer a multi-blade design with unequal spacing of the cutting edges. This produces very round and cylindrical bores compared to conventional reamers and at much higher feed rates than single-point tools.
We are also able to offer DIATOOL’s quick turnaround reconditioning to customers with competitor’s products. This is a huge advantage for those not wishing to waste their initial investment but are not able to afford the long lead times they are experiencing from DIATOOL’s competitors.

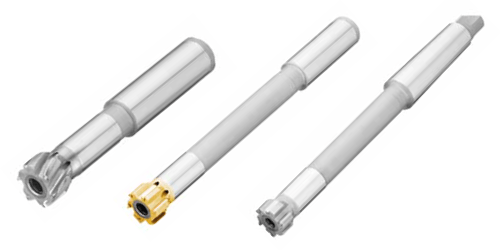

Monoblock reamers are available in both expandable and solid (non-expandable) styles for producing high quality bores. Compensation for wear can be made by tightening a conical screw in the expandable monoblock style reamers.
Solid and expandable Ø 5.600 – 60.599 mm (on request up to Ø 100.599 mm)

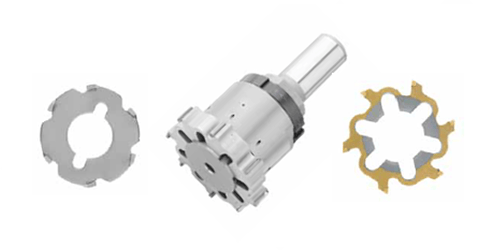

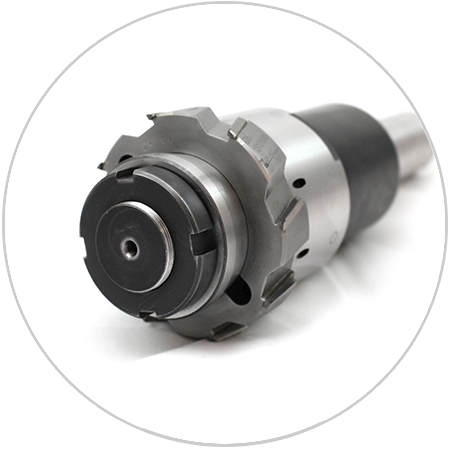

Cutting rings offer an expandable modular design for larger hole diameters and are interchangeable with major European brands. Compensation for wear is made by turning an expansion nut on the mounting arbor. DIATOOL also offers a unique solid (non-expandable) cutting ring when expansion is not necessary and with the added option of left hand helix.
Modular cutting rings Ø 50.600 – 150.599 mm
The Diatool Top Speed Ring (TSR) is a newly designed modular reaming system. The TSR provides a multitude of benefits designed to help cut down on tooling costs and improve efficiency.
Diameter Range: 50.000mm – 225.000mm (1.9921”-8.8583”)

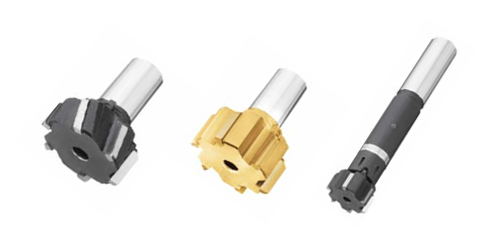

Rapid-set reaming heads are available as a non-expandable, modular option. Reaming heads are interchangeable with the major European brands.
Modular reaming heads Ø 9.600 – 60.000 mm
Challenge Details Diameter: Ø 89.97mm (+/-.018) Material: Ductile Iron Volume: 2500 large housings per year Part Type: Gear box for heavy agriculture machinery Objective High-volume
Challenge Details ∅1.004″ bore on a railroad tie puller part Material: 4140 hammer forged steel Machine: Haas Vertical Mill Volume: 2,000 EAU Struggled to maintain
Challenge Details Slow & inconsistent results from a competitors reamer Poor surface finish from chip balling Material: 1045 Steel Objective Propose a solution for machining
