ID/OD CARBIDE ROLL BURNISHING

REPLACE SECONDARY OPERATIONS WHILE OBTAINING SUPERIOR SURFACE FINISH.

The Boring Bar Style ID/OD tool is used on turning machines to burnish internal and external surfaces creating extremely fine finishes in most ferrous and non-ferrous materials.

ADVANTAGES

LOW MICROINCH FINISH

Produces a 4 to 8 Ra surface finish in one pass.
Improves surface irregularities and tool marks.

PROCESS IMPROVEMENTS

Burnishing is a repeatable and consistent process
Fast cycle times – measured in seconds, not minutes!

VERSATILITY

Burnishing is effective for many different part configurations.
Suitable process for a variety of metals – all ductile metals can be burnished!

LOW COST

Eliminates secondary machines and set ups.
Eliminates secondary processes such as grinding, honing and polishing.
Elliott burnishing tools feature long lasting and replaceable wear parts, reducing total cost over the life of the tool.

WORK HARDENING

Burnishing increases the surface hardness through the cold working process and compressive forces.
Increases metal’s resistance to fatigue and failure at stress points.
Produces a dense and uniform surface.

VERSATILITY

Burnishing is effective for many different part configurations.
Suitable process for a variety of metals – all ductile metals can be burnished!

EASY-TO-USE

MTG and Elliott burnishing tools require limited training to operate.
Easy to maintain and repair.
Common repair parts are always stocked!

PROVEN QUALITY

The burnishing process has been refined and improved for over 100 years and has a proven record of success.
Monaghan Tooling Group and Elliott Tool Technologies continue this long tradition by providing the industry’s highest quality burnishing tools.

STANDARD OPTIONS

MODEL S2320-00

1.75” diameter roll
.032” radius
12″ OAL
Designed for burnishing parts with a minimum ID of 2.25” and as deep as 8”-9”.
Also available with a .062” radius roll (CB127-00) or with a .093” radius roll (S2340-00).

MODEL S2320A00

Longer version of the 2320-00.
1.75″ diameter roll
032″ radius
18″ OAL
Designed for burnishing parts with a minimum ID of 2.25 and as deep as 14-15″.
Also available with a .062” radius roll (CB168-00) or with a .093” radius roll (S2340A00).

MODEL S2289-00

Ideal for smaller parts being run on turning centers.
1.188″ diameter roll
.032″ radius
9.5″ OAL
Designed for burnishing parts with a bore diameter between 1.375″ – 2.50″ and to a depth of 3″
Also available with a .093” radius roll (S2289A00)

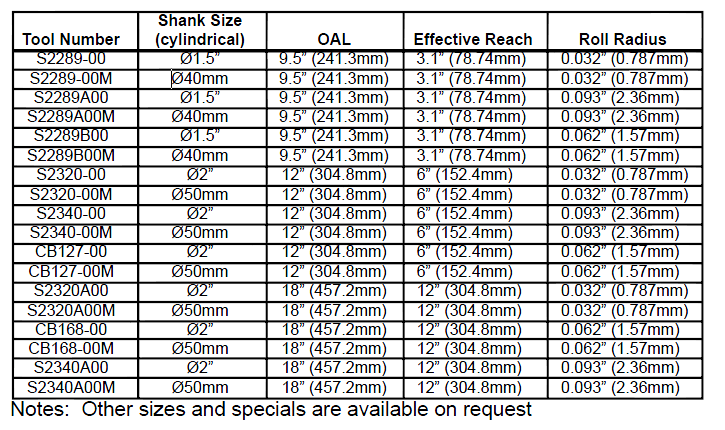

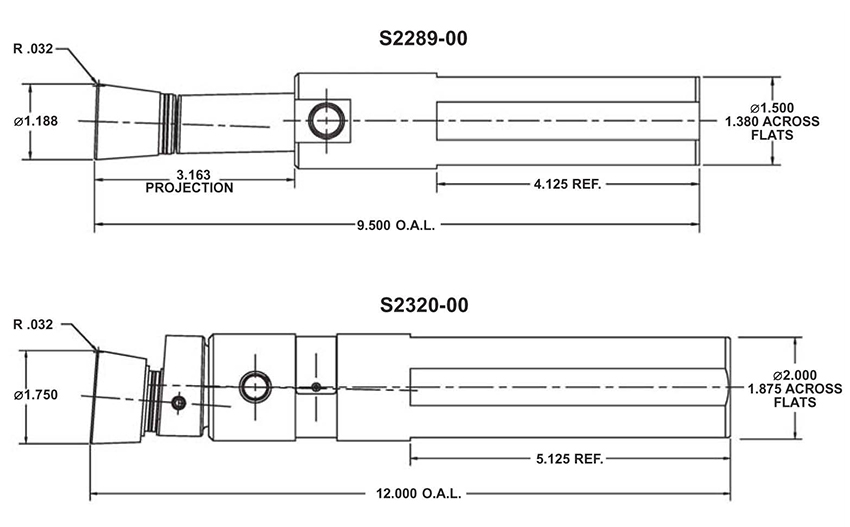

STANDARD DIMENSIONS

TECHNICAL REFERENCE AND DOWNLOADS

BROCHURES AND CATALOGS

Carbide Roll Burnishing Brochure Includes standard tool dimensions.

Burnishing Tools Catalog

SETTING AND OPERATING INSTRUCTIONS

ID/OD Carbide Roll (Boring Bar) S2289-00 – Setting and Operating Instructions

ID/OD Carbide Roll (Boring Bar) S2320-00 – Setting and Operating Instructions

SETTING AND OPERATING INSTRUCTIONS
